Kali Linux man in the middle attack tutorial with Ettercap

Welcome again, you have read my previous post-Arp poisoning attack with ettercap tutorial in Kali Linux and you got suspense. And didn’t get full tutorial. In this article, we will cover  Kali Linux man in the middle attack tutorial and discuss every step. I hope you liked my notes on Penetration Testing Tutorial So enjoy this Article and leave a comment on it and don’t forget to help me by sharing this article.

Victim 1:

Hardware: Virtual Machine

Operating System: Window 8.1 / Running Xampp server

IP Address: 192.168.56.1

MAC Address. 08:00:27:00:04:93

Victim Window arp table



Victim 2:

Hardware: Virtual Machine

Operating System: Ubuntu 15.04

IP Address: 192.168.56.102

MAC Address: 08:00:27:79:2C:92

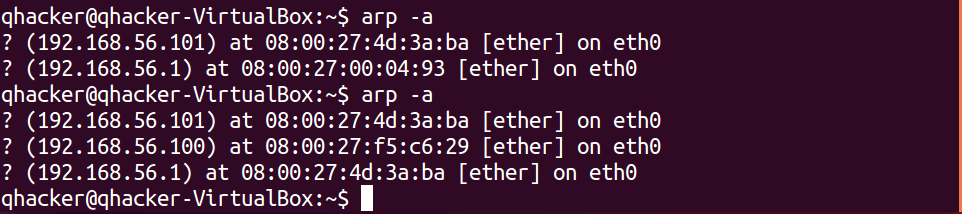

arp poisoning victim Ubuntu

Attacker:

Hardware: Virtual Machine

Operating System: Kali Linux 2.0

IP Address: 192.168.56.101

MAC Address 08:00:27:4D: 3A: BA

arp table on Attacker

Step 1: On the Kali Linux ettercap is installed by default, To open it, Go into

Application >  Sniffing & Spoofing > ettercap-graphical

run ettercap on Kali Linux

Step 2: Go Next Sniff > Unified Sniffing OR Pres Shift+U

26 unidifiend 2

Another window will be pop up where you need to select Network interface from the drop-down menu and click next

26 network interface 3

Next, Go to Hosts > Scan for hosts

26 scan for hosts

In this option, Atacker system will scan the whole network and find out, “how many devices are connected to the network?”

Next step, To See the connected hosts in the network

Go Hosts > Host list or Press Key H

26 host and host list

Next tab will appear, In this menu you should select the desired host and click on add to target 1, afterward select another host and click on add to target 2

26 add target

Next, Go into Mitm > Arp poisoning after click on this option new window will be pop up check sniff remote connection and it OK. arp poisoning will start automatic

26 enable arp poisioning

Now you can sniff data by click on Start > Start Sniffing or Ctrl+W

26 start sniffing

When you finished all process, then sniffing will be started. If you want to check arp poisoning is activated or not Go Plugins > Manage the plugins OR Ctrl+P

And click on chk_poison You will see a result like the following image.

26 check poisoningWhen user will access any page and enter the login credential, It will be captured by attacker machine see result.

26 captured data



Note:  It will capture data over HTTP only if you want to capture data use sslstrip for mare detailSecure Socket Layer SSL analysis with sslstrip in Kali Linux
